S-1227 Series
Effortless, Efficient, Automatic
S-1227 Advanced High Efficiency Series
Going beyone the traditional designs, effectively achieving noise reduction and dust prevention
Production speed up to 250 pcs/minute 15,000 pcs/hour
APPLICATIONS
Operating System
- Production Management Software
- Remote Management System
- Ordering Set-up Function
- Intelligent Graphical User Interface
- Real-Time Information Dashboard
- Optimized Quality Management
- Downtime Information Processing
- Customized Functional Reports
-
Computer Interface Control System
Centralized control system, ensuring synchronized operation and status updates for each unit. -
Intelligent Graphical User Interface
Operator can efficiently access information and navigate seamlessly, with the flexibility to switch between various box-type production modules.
-
Ordering Set-Up Function
Adopting simple graphical user interface, the system automatically interprets the relevant functional parameters of each unit, eliminating the necessity for manual repetitive adjustments.
Feeder Unit
- Sun Automation feeding system, capable of adapting to various conditions of corrugated sheet.
- Sunrise's vacuum system enhances the flexibility tolerance of corrugated sheets, minimizing feeding challenges resulting from variations in inconsistent cardboard quality, such as titling or shifting issues.
-
Suitable for cardboard sheets with a thickness range of 1.5~9mm (AB-E flute), it accommodates to a variety of production requirements, including different thicknesses of cardboard sheets feeding.
-
Connect to the computer system for preconfiguring corrugated sheet types and dimensions, allowing for automatic adjustments in sheet feeding distance, gap between feed rolls and stopper positions.
-
Maximize stroke extensions automatically adjusted feeding mechanism to minimize damage to the cardboard sheets.
-
工-Beam Steel Structure
Minimize operational vibrations.
Ensure stability throughout the feeding process.
Improve the precision of the feeding mechanism.
-
Lead Edge Feeding with Adjustable Vacuum System
Sun Automation lead edge feeding system, in conjunction with Sunrise's designed vacuum system, enhances adaptability to varying qualities of cardboard sheets.
-
Intelligent Graphical Control Interface
Graphical design control panel to offer a user-friendly operational experience, minimizing confusion, enhancing efficiency.
Printer Unit
-
The “RETURN” function with automatic restoration for precise print positioning, enhances machine efficiency and significantly reduces waste production.
- The vacuum transfer device minimizes displacement of print dots, allowing for adjustable gaps between the cardboard sheet and printing plate to achieve the state of “kiss-touch.” This ensures high print quality for both print dots and full-page printing.
- Doctor blade chamber inking device delivers a consistent ink volume during both high and low-speed rotations, guaranteeing clarity in print dots, fine text and even full-page printing.
-
Chamber blade inking device offers easy maintenance, minimal ink consumption, short cleaning time and high system stability.
- Pneumatically controlled anilox ink transferring timming
- Automatic printing plate locking device
- Automatic ink shortage detection system
- Protective device with entry detection
-
__24A08bYZGA.png)
Doctor Blade Chamber Ink Distributing System (Optional)
A doctor blade system ensures stable print quality and ink consistency in high and low-speed operations. The optional quick-change blade system allows replacement in under one minute. -
Quick Ink Washing System
User-friendly interface equipped with a one-press automated quick ink washing system to simplify the procedural workflow. -
Protective Device with Entry Detection
Sensor-based protective device featuring a clearly illuminated warning sign, providing a safe working environment.
Slotter Unit
- The dual-shaft slotting mechanism with independent knife shafts enables unrestricted box height, prevents collisions, and simplifies slotting depth adjustment without the need for the tool dissassembly, effectively saving operational time.
- The linkage plate, in collaboration with linear guides and a ball screw, enhances the efficiency and precision of controlling the slotting and creasing operations for corrugated sheets.
- The slotting knife's fixed feeding gap eliminates adjustments for cardboard thickness, enhancing operational efficiency.
- Upon entering cardboard box dimensions needed, the machine automatically interprets slotting knife movement positions, simplifying operations and meeting production requirements.
- The cut-off edge-trimming knife prevents the accumulation of scraps and dust, ensuring precise slotting accuracy
-
Double-Shaft Slotting Mechanism
Double-shaft slotting mechanism design, no restricted in box height. The slotting knife holder lateral movement by the linear guideway and ball screw to ensure a smooth move to make the slotting and creasing more flexible and precise. -
Glue Tab Cutting Device
The glue tab cutter holder is equipped with a cushion mechanism, extending the lifespan of the cutter and reducing the need for adjustments.
-
Slotter Unit Panel Function

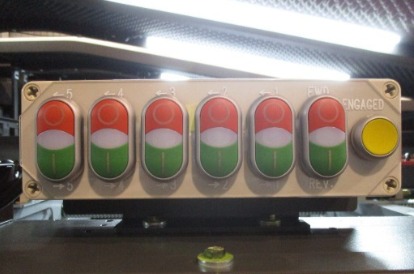

The button panel offers features for registration, lateral movement of the slotting knife, and knife engagement.
Die-Cutter Unit
- A 7-stage speed compensation system ensures precise synchronization of linear speeds between the anvil and the die-cutting cylinder.
- The quick-lock functionality of the die-cut mold (optional) enhances efficiency and decreases the time required for mold replacement.
- The electric anvil oscillation device evenly distributes the wear on the anvil surface, thereby extending the lifespan of the anvil roll.
-
Anvil Grinding System
Restore the surface of the anvil roll to a smooth and good condition, improving operational stability. -
Electric Anvil Oscillation Device
The electric anvil oscillation device evenly distributes the wear on the anvil surface, thereby extending the lifespan of the anvil roll. -
User-friendly Control Interface
Graphicl user interface for die-cutting mechanism functions.
LAYOUT
When used in conjunction with other devices, variations in dimensions and specification may occur.
|
Models F Fixed / S Open Closed |
F-618 Series (27.5") |
F/S-925 Series (37.5") |
S-1227 Series(50") |
S-1628 Series (66") |
S-1633 Series (66") |
F-1227 High Productivity (50") |
|
Production Speed (minute / hour) |
350 / 21,000 | 320 / 19,200 |
250 / 15,000 |
150 / 9,000 | 150 / 9,000 | 300 / 18,000 |
|
Max. Cardboard Size (Continous Feed) |
600 x 1800 | 860 x 2500 |
1150 x 2700 |
1520 x 2800 | 1520 x 3300 | 1100 x 2700 |
|
Max. Cardboard Size (Skip Feed) |
N/A | 1200 x 2500 |
1600 x 2700 |
2000 x 2800 | 2000 x 2800 | 1250 x 2700 |
| Min. Cardboard Size | 200 x 455 | 270 x 750 |
340 x 750 |
450 x 750 | 450 x 750 | 340 x 750 |
| Max. Print Area | 600 x 1700 | 870 x 2400 |
1170 x 2600 |
1560 x 2700 | 1560 x 3200 | 1170 x 2600 |
| Repeat Print Point | 700 | 953 |
1272 |
1676 | 1676 | 1272 |
| Cardboard Thickness | 1.5 ~ 9 | 1.5 ~ 9 |
1.5 ~ 9 |
1.5 ~ 9 | 1.5 ~ 9 | 1.5 ~ 9 |
| Max. Width of Glue Tab | 45 | 45 |
45 |
45 | 45 | 45 |
| Max. Die-Cutting Area | 600 x 1400 | 900 x 2300 |
1200 x 2600 |
1600 x 2700 | 1600 x 3200 | 1200 x 2600 |
|
TV Top Print BV Bottom Print |
TV | TV |
TV / BV |
BV | TV / BV | TV |
