Folding Gluing Device
Folder Gluer
Folding Gluing Unit

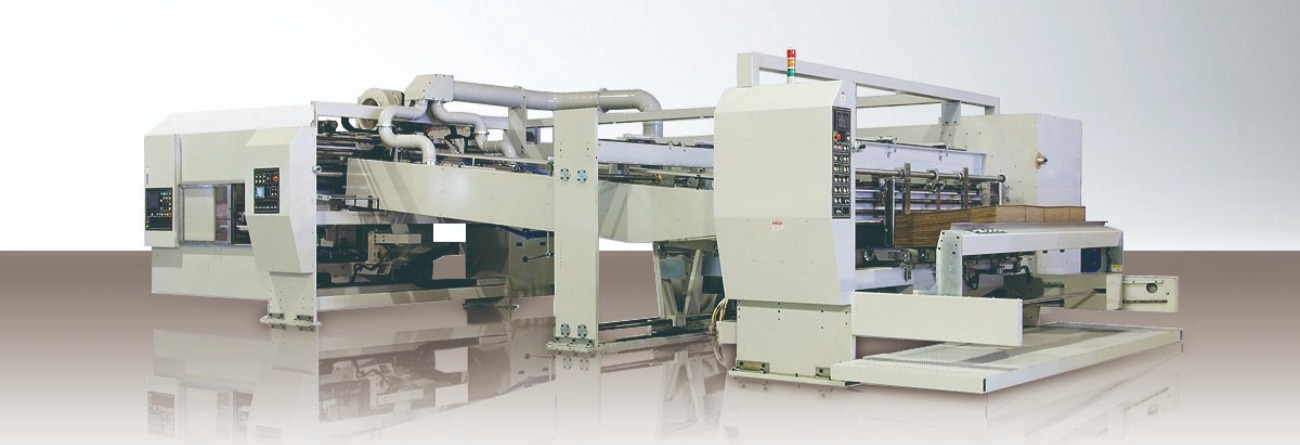

Folder-Gluer Unit
- Feeding, Gluing, Folding, Counting and Ejecting section
- Utilizing servo-driven T-shaped single touchpoint, assisting folding belts to enhance precision in the folding process
- Adjustable upper and lower folding belt gaps
- Adjustable lower folding rod gaps
- Extended vacuum suction to stable conveying and enhanced the accurracy in folding
- Automatic adjusted feeding sections ensures a continuous and steady production flow
- Adjustabled glue wheel with inside and outside glue tabs application
-

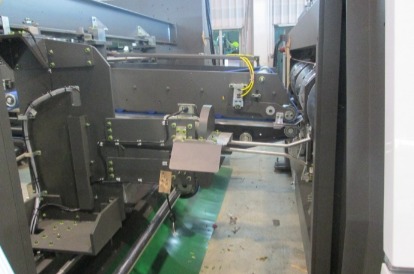

Feeding Section
-

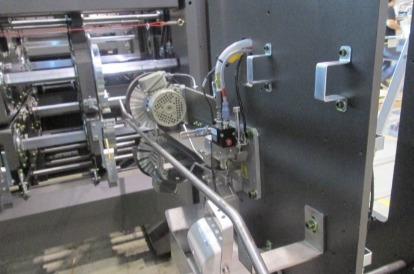

Gluing Section (Spray)
-

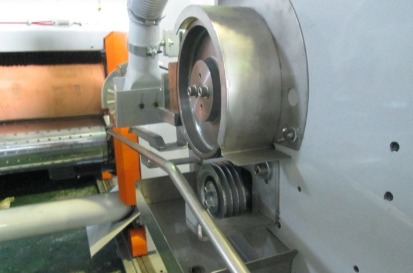

Gluing Section (Glue Wheel)
Counter Ejector Unit
- Servo controlled counting and ejecting features
- Up to 25 pcs per bundle
- 3-section of pressure blower fan

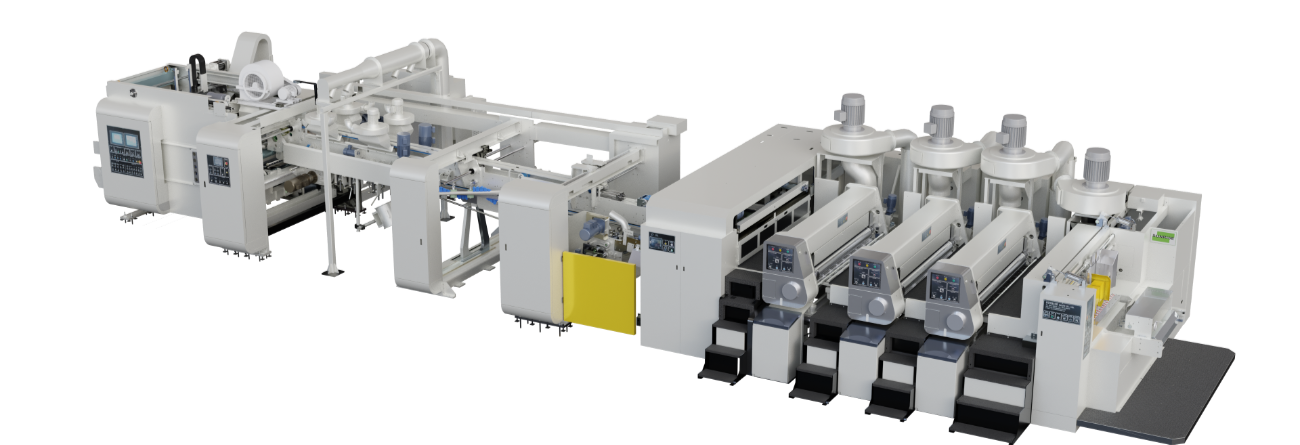

Folder-Gluer Unit
The layout diagram linked above primarily utilizes the S-1227 model as its basis.
When it is used in conjunction with other models, variations in dimensions and specification may occur.
